Tanabe Japan TNB-200 6.5HP Gasoline Engine with Kawasaki High-Pressure Sprayer

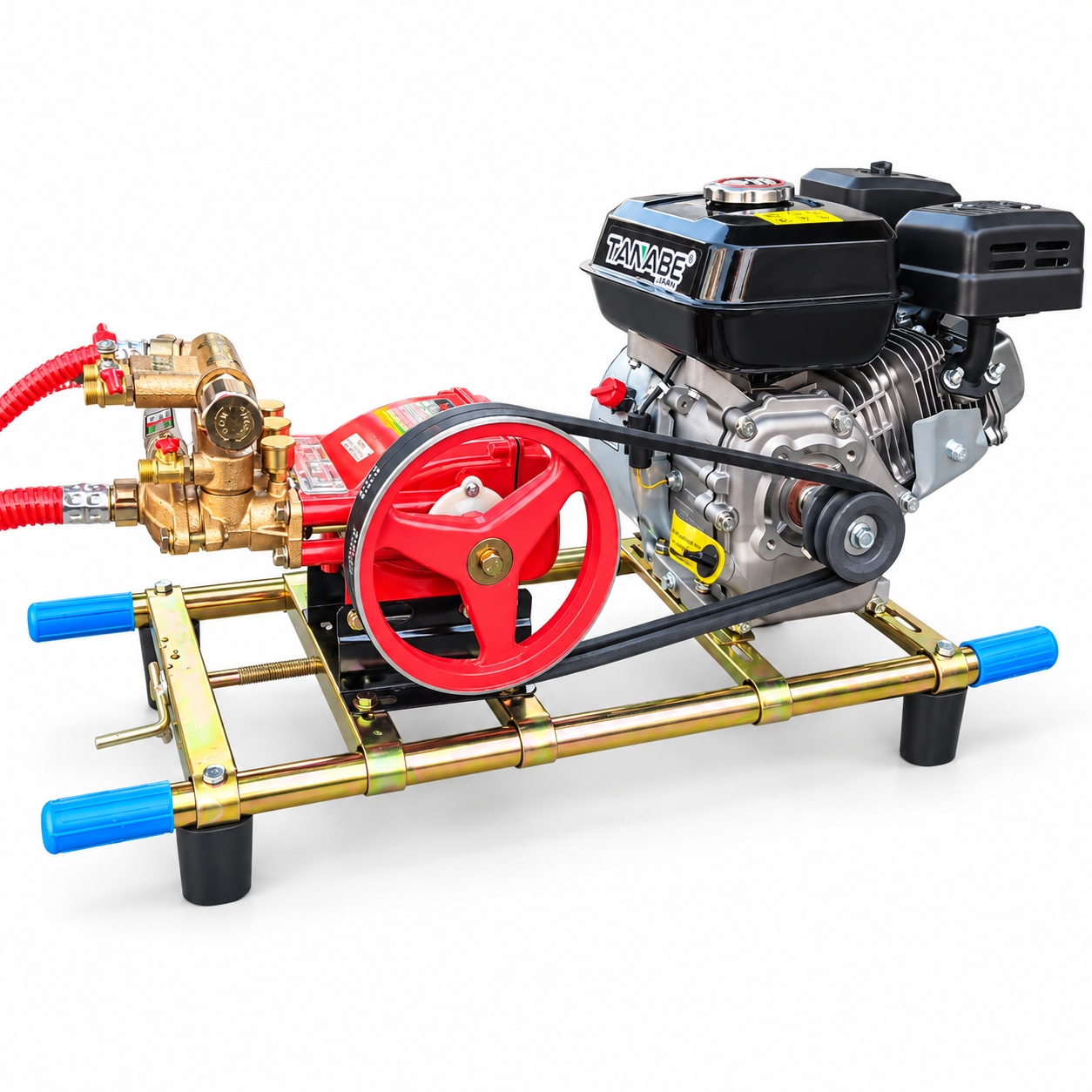

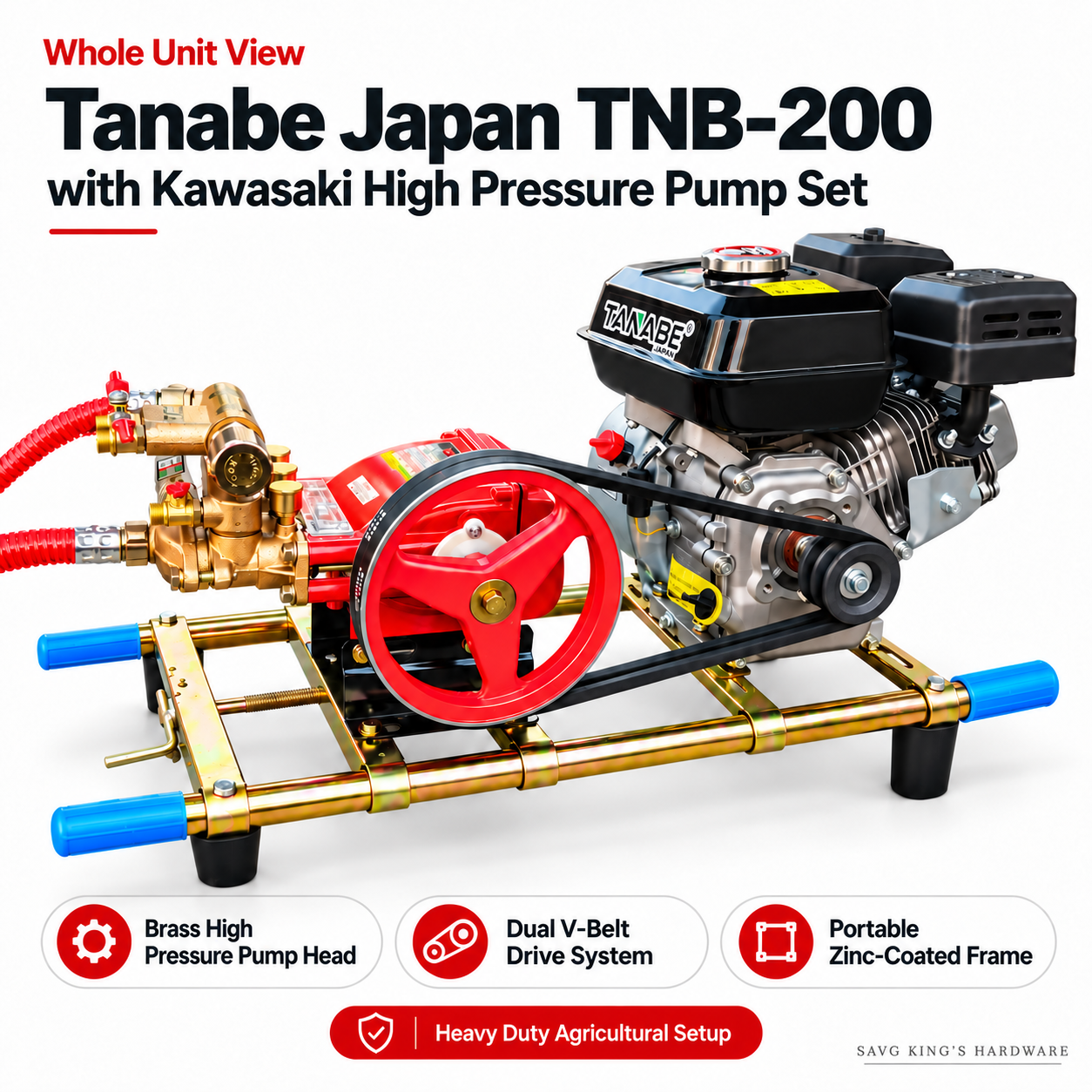

Power through agricultural spraying jobs without needing a nearby electrical outlet. This portable spraying assembly pairs a Tanabe Japan TNB-200 gasoline engine (commonly listed as 6.5HP) with a Kawasaki-branded high-pressure sprayer pump head. A belt-and-pulley drive transfers power from the four-stroke engine to the red pump unit. The photographed unit includes a rugged metal carrying frame, visible brass manifold, pressure-adjustment hardware and hose connectors.
Highlights
- Portable gasoline power: ideal for locations where mains electricity is unavailable.

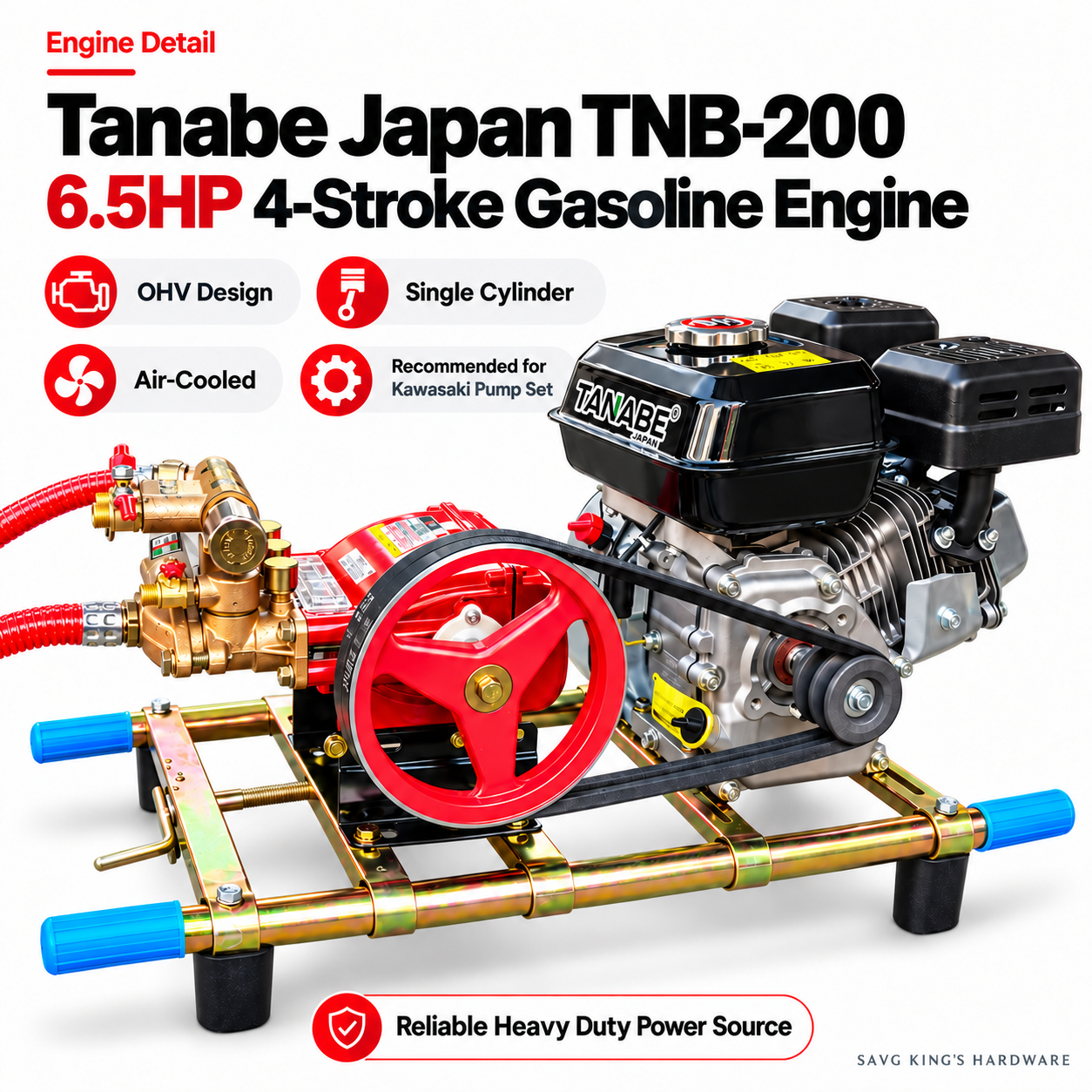

- Tanabe TNB-200 engine: 6.5HP-rated engine in commonly advertised TNB-200 configurations.
- 4-stroke utility engine: single-cylinder, air-cooled OHV design as specified for the TNB-200 engine family.
- Kawasaki high-pressure pump: brass-head spraying assembly designed to be driven by a belt-and-pulley setup.
- Frame mounted: durable portable frame helps protect and support the engine and pump.
Typical uses
Farm and crop spraying, orchard and nursery maintenance, and compatible outdoor rinsing or cleaning. Always confirm pump material, hose, pressure and chemical compatibility; not all pesticide or detergent formulations are suitable for every sprayer.

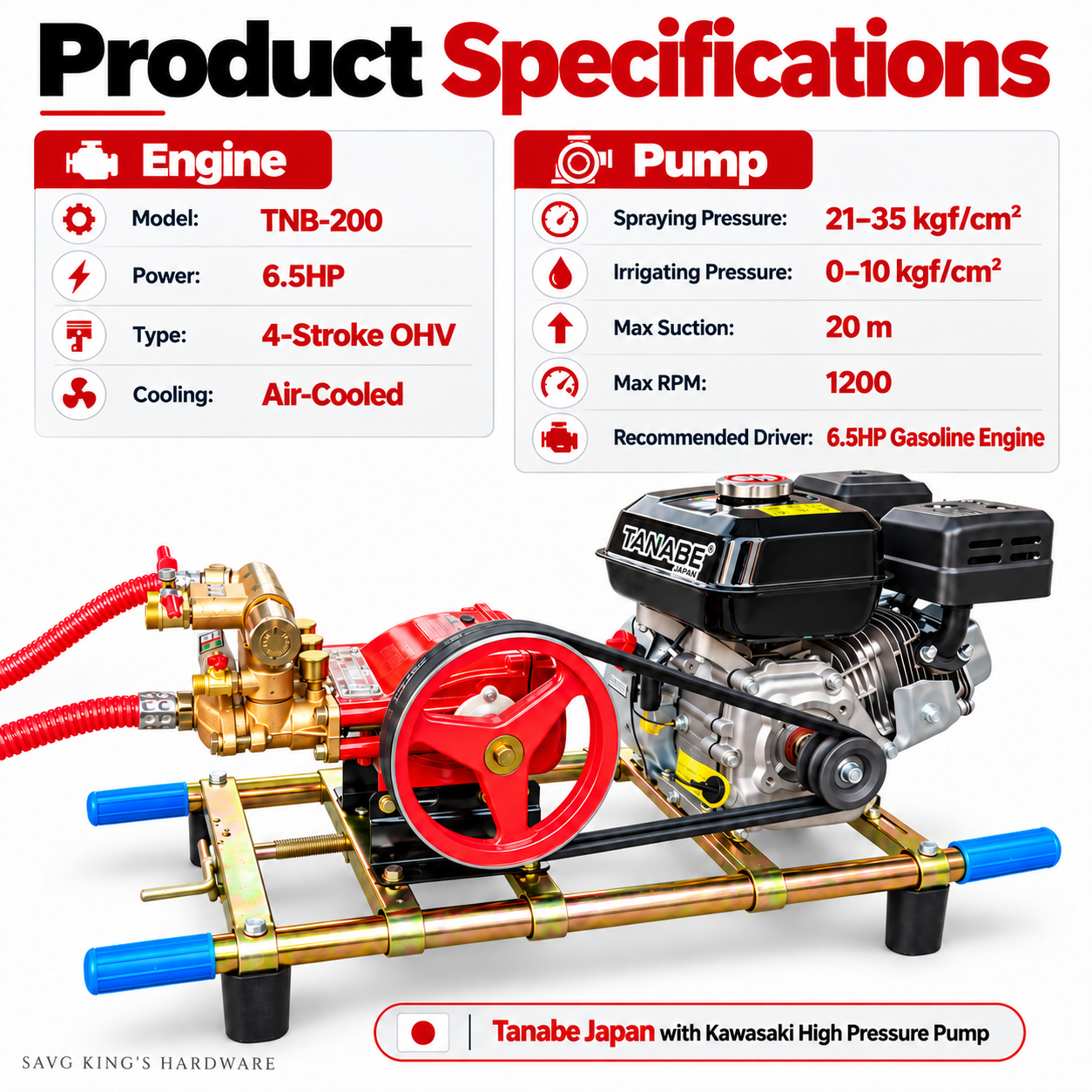

Engine and pump specifications
| Engine brand / line | Tanabe Japan TNB-200 (seller-provided identification; verify unit nameplate) |
|---|---|
| Engine output | Typically 6.5HP as advertised for TNB-200 |
| Engine configuration | 4-stroke, OHV, single-cylinder, air-cooled gasoline |

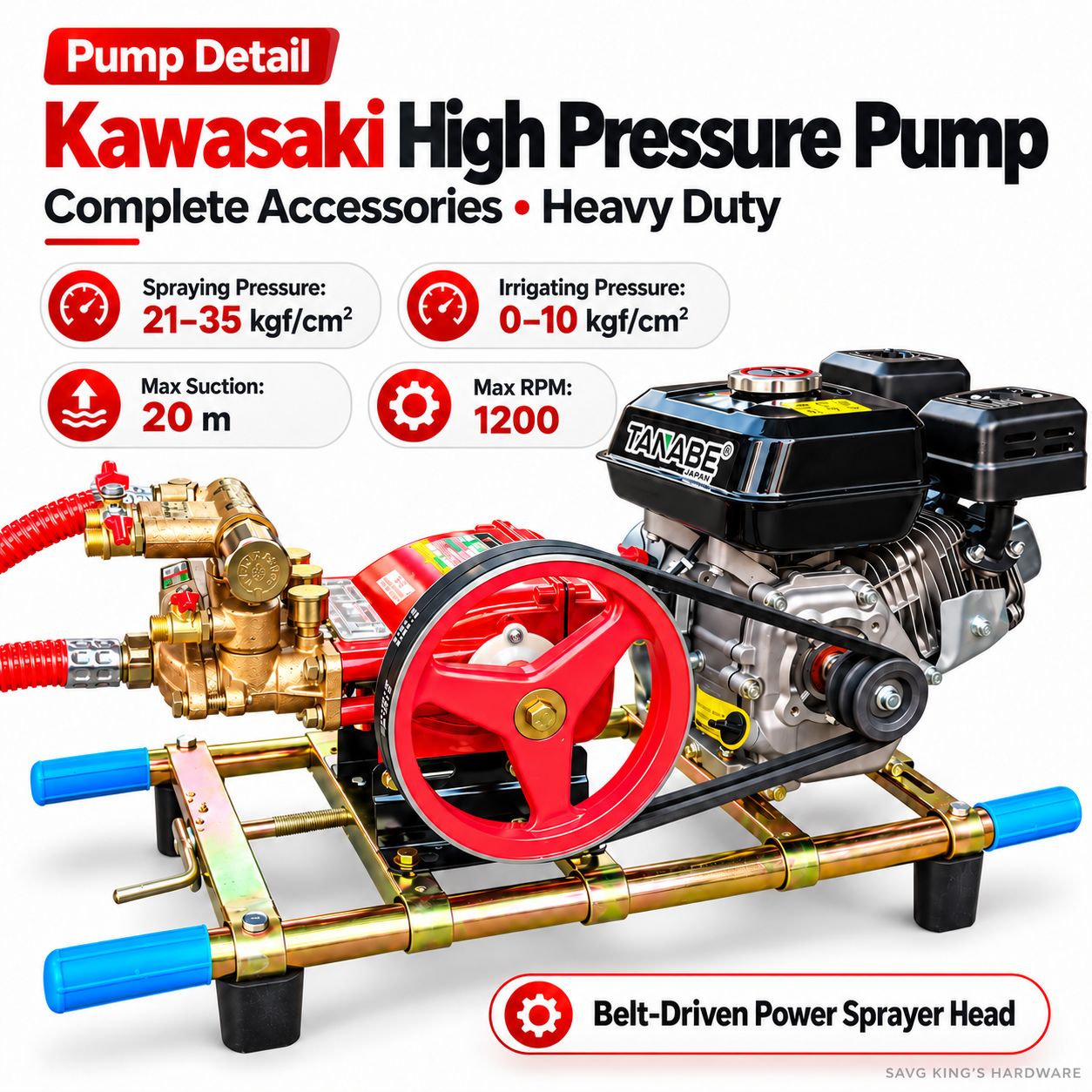

| Pump brand | Kawasaki-branded high-pressure pump assembly; exact pump model pending confirmation |
| Drive arrangement | Belt and pulley, frame-mounted |
| Claimed spraying pressure | 21–35 kgf/cm² (approx. 299–498 psi) |
| Claimed irrigation pressure | 0–10 kgf/cm² (approx. 0–142 psi) |
| Claimed maximum pump RPM | 1,200 rpm |
| Claimed suction figure | 20 m (seller-supplied figure; whether this refers to hose length or maximum suction lift has not been verified) |
| Recommended driver (pump claim) | 1.5HP electric motor or 6.5HP gasoline engine |
| Box inclusions | Confirm spray hose, suction hose, strainer, gun/lance, nozzles and other accessories before purchase; accessories pictured may be demonstration equipment |
| Package dimensions / gross weight | To be measured |
Pressure was provided as “kg/cm³,” which is not a valid pressure unit; the figures above use the likely intended kgf/cm². All pump performance figures are seller-provided and subject to checking against the specific pump’s label/manual before final publication or technical use. “Japan” is part of the advertised brand name and does not independently establish the country of manufacture.
Buying advice
Contact SAVG King’s Hardware to confirm the actual TNB-200 nameplate, Kawasaki pump model, supplied hose lengths and fittings, price, and stock. Use a manufacturer-approved pressure setup and avoid contacting the moving belts. Check engine oil, fuel and pump lubrication before operation. Do not operate a pump without a suitable fluid supply.
Looking for hose? See Tanabe Kawasaki T-Pro 100m Sprayer Hose (separately listed; check compatibility).
