Mindong 1.5HP Electric Motor with Kawasaki High-Pressure Power Sprayer Set

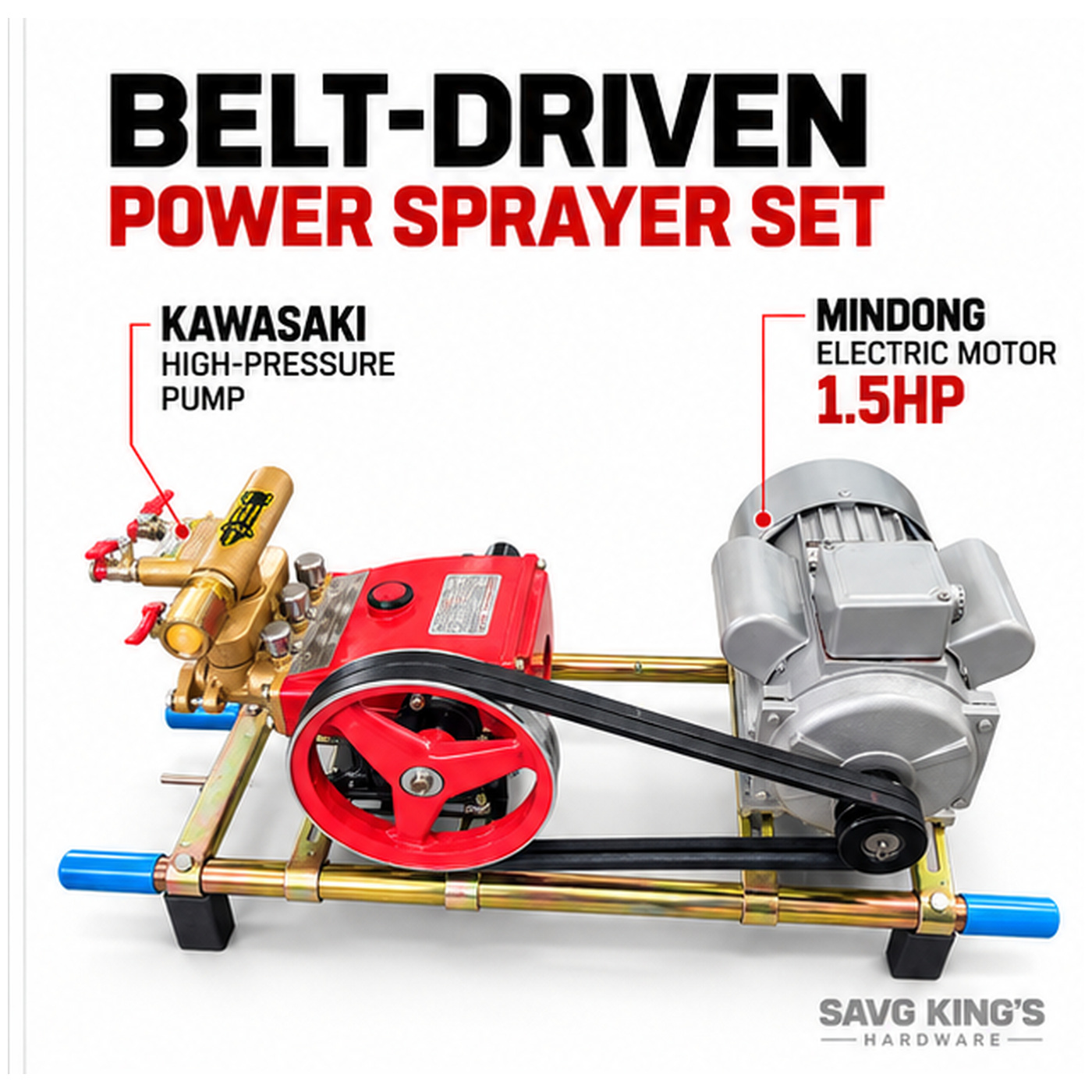

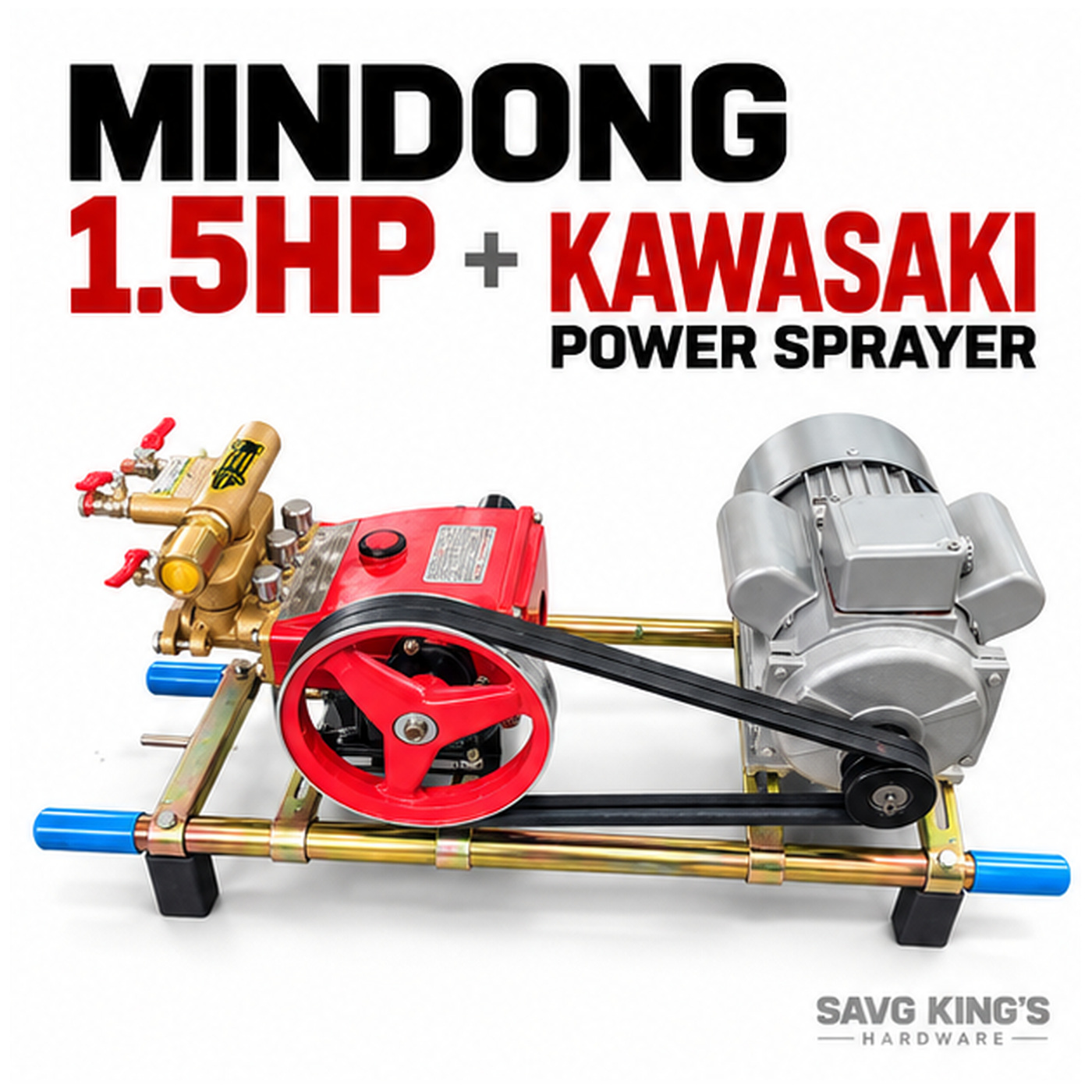

Bring dependable belt-driven spraying power to farm, nursery, garden and compatible outdoor cleaning jobs. This frame-mounted power sprayer assembly combines a 1.5HP Mindong electric motor with a Kawasaki-branded piston-type high-pressure sprayer pump, coupled through a belt-and-pulley transmission. The supplied photograph shows a silver electric motor, red pump housing, brass pump/manifold components and a gold-tone portable carrying frame with blue grips.
Product highlights
- Electric instead of gasoline: no fuel filling or engine exhaust at the worksite; a suitable electrical outlet, grounding and correct cord/protection are required.
- 1.5HP drive motor: suitable for a properly matched sprayer pump when the actual motor label and pump requirements are confirmed.
- Belt-driven system: visible dual-run belt arrangement and frame-mounted motor/pump assembly.
- Brass fittings and pressure-control hardware: visible at the high-pressure pump inlet/outlet area.
- Portable support frame: helps position the set; unplug before moving or servicing.
Technical overview

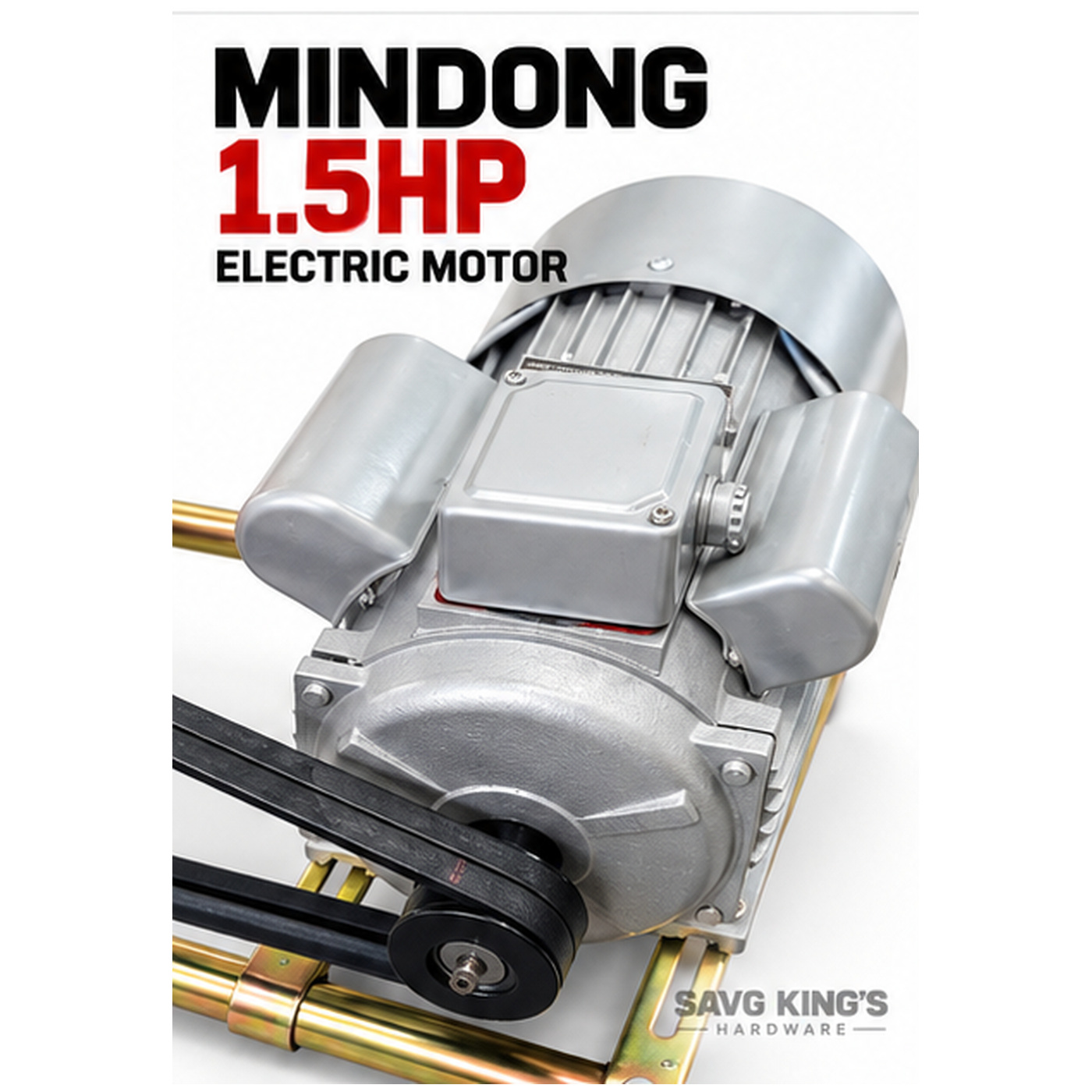

| Motor | Mindong electric motor, 1.5HP (seller identification) |
|---|---|
| Motor phase, voltage and frequency | Comparable listings commonly state single-phase 220V / 60Hz. Verify from this unit’s motor nameplate. |
| Exact Mindong motor model, winding, motor RPM and amperage | Not confirmed. Sellers list more than one motor variant; do not assume copper or aluminum winding. |

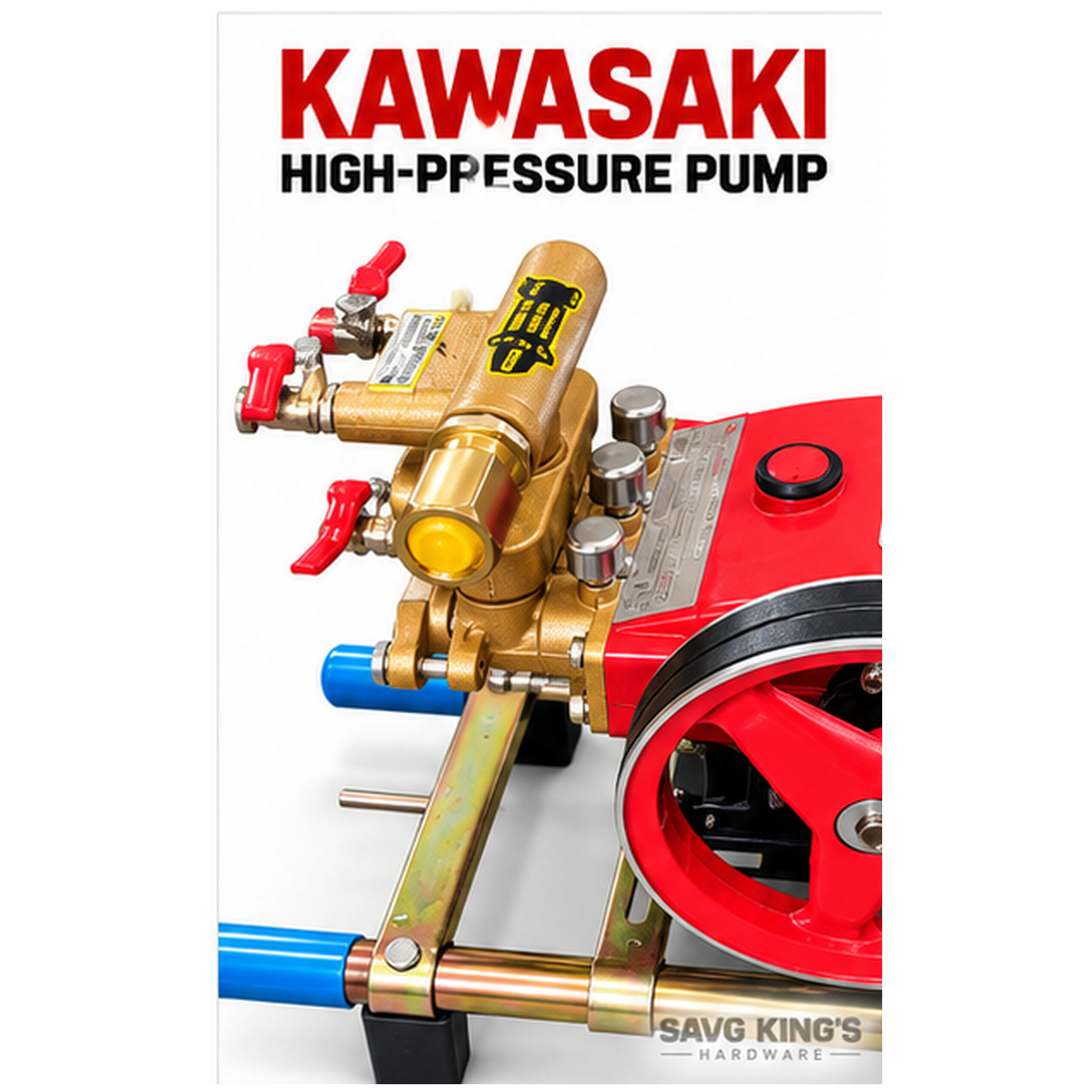

| Sprayer pump | Kawasaki-branded high-pressure piston sprayer head; exact model to verify |
| Drive | Belt and pulley |
| Advertised spraying pressure for comparable pump setups | 21–35 kgf/cm² (approx. 299–498 psi), not yet verified for this pump |
| Advertised irrigation pressure for comparable pump setups | 0–10 kgf/cm² (approx. 0–142 psi), not yet verified for this pump |
| Comparable pump speed | Up to 1,200 RPM; verify the specific Kawasaki head’s rating |
| Dimensions and complete shipping weight | Not yet measured for this unit (see reference measurements below) |
| Supplied accessories | Confirm hoses, gun/lance, strainer, power cord, plug, oil, couplings, pulley and belt inclusions before order. Do not assume items shown in other sellers’ packages are included. |
Reference size and weight — for planning only
A comparable Mindong 1.5HP + Kawasaki electric power sprayer assembly is advertised by another seller at approximately 100 × 37 × 50 cm and 30 kg. Those figures are not measurements of this unit. Final dispatch and shipping cost must use actual packed weight and dimensions, once measured.
Typical applications
Compatible crop spraying, garden and nursery maintenance, orchard equipment, and suitable outdoor washing tasks. Check nozzle, hose-pressure rating, pump seal compatibility and spray chemicals before use. This set is not automatically suitable for potable-water, flammable-liquid, or every chemical application.
Important setup and operation notes
- Have a qualified person check power supply, grounding, appropriate current protection, cable/plug and overload protection against the actual motor nameplate.
- Keep electrical components and connectors dry. Do not touch live or wet electrical equipment.
- Check the pump’s oil level and water prime before operation; do not run dry.
- Keep hands, clothing and other objects away from the exposed moving belts, and disconnect power before servicing or moving the assembly.
- Confirm package contents and warranty conditions with SAVG King’s Hardware before ordering.
Also available: Mindong MYC90L-4C 1.5HP copper electric motor (sold separately) and Tanabe Kawasaki T-Pro sprayer hose. Verify interchangeability with the installed pump fittings.
Reference specifications and comparable-size data are based on public third-party listings, including PowerMark and Goldpeak Tools. They do not independently verify this specific assembled unit.
