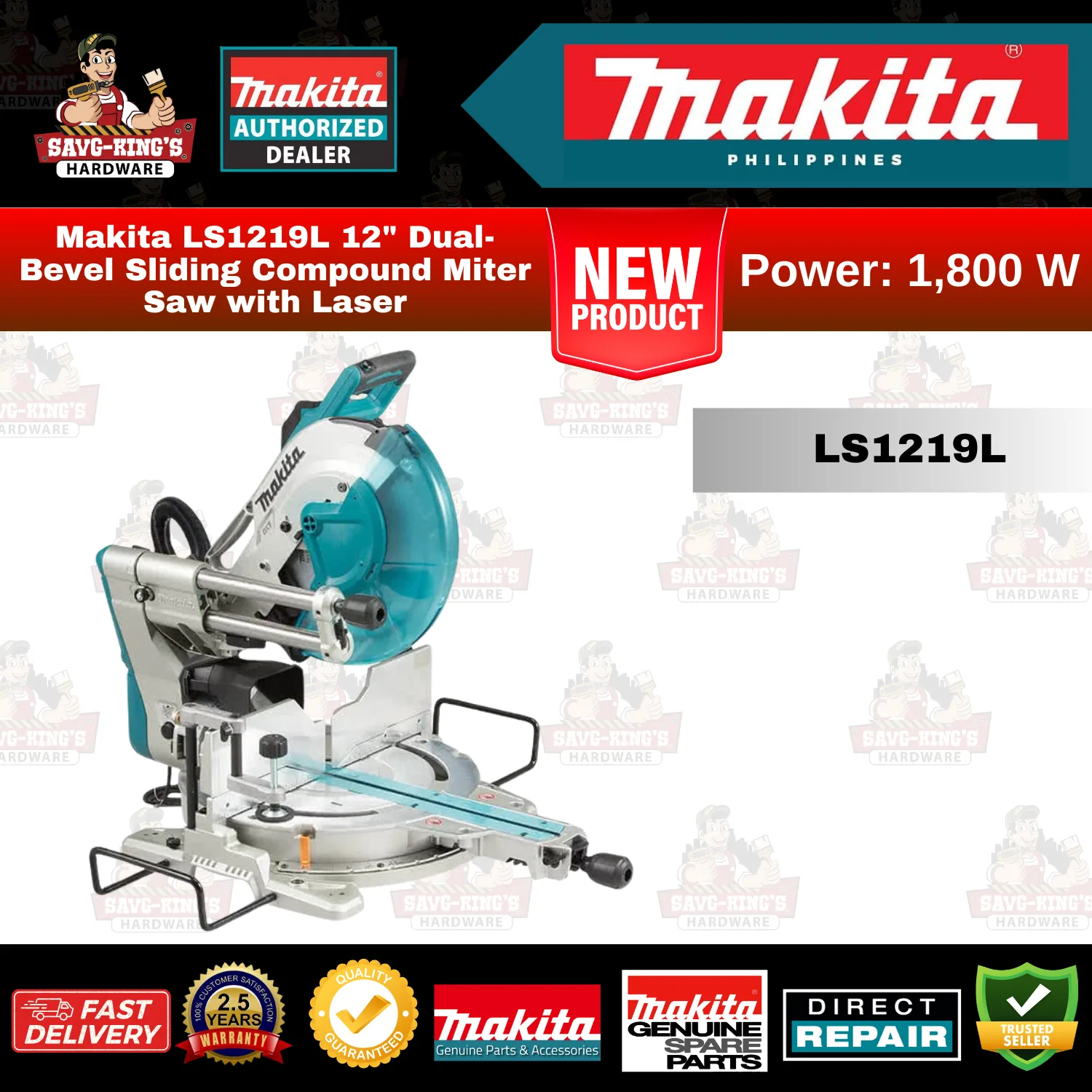

Makita LS1219L 12″ Dual-Bevel Sliding Compound Miter Saw with Laser

Description

Makita LS1219L 12″ Dual-Bevel Sliding Compound Miter Saw with Laser

Overview:

The Makita LS1219L is a high-performance 12″ dual-bevel sliding compound miter saw engineered for accurate, powerful cutting. This saw features a unique 2-steel rail sliding system for reduced footprint and easy placement against a wall, making it highly space-efficient. Equipped with a laser cut line guide and dual dust collection ports, it offers precision and cleanliness in operation. With a 15.0 AMP direct drive motor and soft start for smooth operation, the LS1219L is ideal for professionals who need reliable power and versatility for large and detailed woodworking projects.

Key Features:

• 12″ Blade Diameter with 1″ Arbor:
  • Capable of handling a wide range of cutting needs, from crown molding to large baseboards.
• Increased Cutting Capacity:
  • Cuts up to 15″ at 90° and 10-1/2″ at 45° with versatile configurations for both vertical and horizontal cuts.
  • Handles up to 8″ crown molding (vertically nested) and 6-3/4″ baseboard (vertical) for expansive cross-cutting capacity.
• Compact Design with Single Slide-Glide System:
  • The 2-steel rail sliding system reduces the saw’s footprint, allowing for operation flush against a wall.
• Advanced Dust Collection:
  • Dual dust ports ensure efficient dust management, keeping your workspace cleaner.
• Laser Cut Line Guide:
  • The built-in laser shows the line of cut, even when the blade is off, with micro-adjustments for precise alignment left or right of the blade.
• Durable Direct Drive Motor:
  • The 15.0 AMP motor provides consistent power with reduced maintenance needs and supports constant speed under load.
• Soft Start and Electric Brake:
  • The soft start feature minimizes startup shock, while the electric brake adds safety by quickly stopping the blade after a cut.
• Bevel and Miter Adjustments:
  • Bevels 0-48° left and right, with miters 0-60° left and right.
  • Positive miter stops at 0°, 15°, 22.5°, 31.6°, 45°, and 60° (both directions).
• Large Aluminum Base and Tall Fence System:
  • A large aluminum base provides stability for efficient cutting, while the 5-1/2″ fence adds support for precise bevel and miter cuts.
• User-Friendly Design:
  • The ergonomic rubberized D-handle offers a comfortable grip.
  • Features like the oversized trigger switch, easy blade changes, and see-through blade guard enhance usability and safety.

Specifications:

• Power: 1,800 W
• Blade Diameter: 305 mm (12″)
• Arbor Size: 25.4 mm (1″) for most regions; 30 mm (1-3/16″) for European countries
• Cutting Capacity:
  • 90°/90°: 3-5/8″ x 15″ (maximum)
  • 45°L/90°: 2-3/8″ x 15″
  • Crown Molding (Vertically Nested): 8″
  • Baseboard (Vertical): 6-3/4″
  • Baseboard (Flat with auxiliary wood): 16-3/8″
• No Load Speed: 3,200 RPM
• Bevel Angle: 48° left / 48° right
• Miter Angle: 60° left / 60° right
• Noise Levels: 91 dB(A) sound pressure, 100 dB(A) sound power
• Dimensions (L x W x H): 35-1/4″ x 26-1/8″ x 28-1/2″
• Net Weight: 65 lbs.
• Cord Length: 2.5 m (8.2 ft)

Summary:

The Makita LS1219L is a feature-packed miter saw designed for accuracy and heavy-duty performance. With its laser guide, high-powered motor, and innovative sliding system, it’s an ideal choice for precise, large-scale woodworking tasks.
