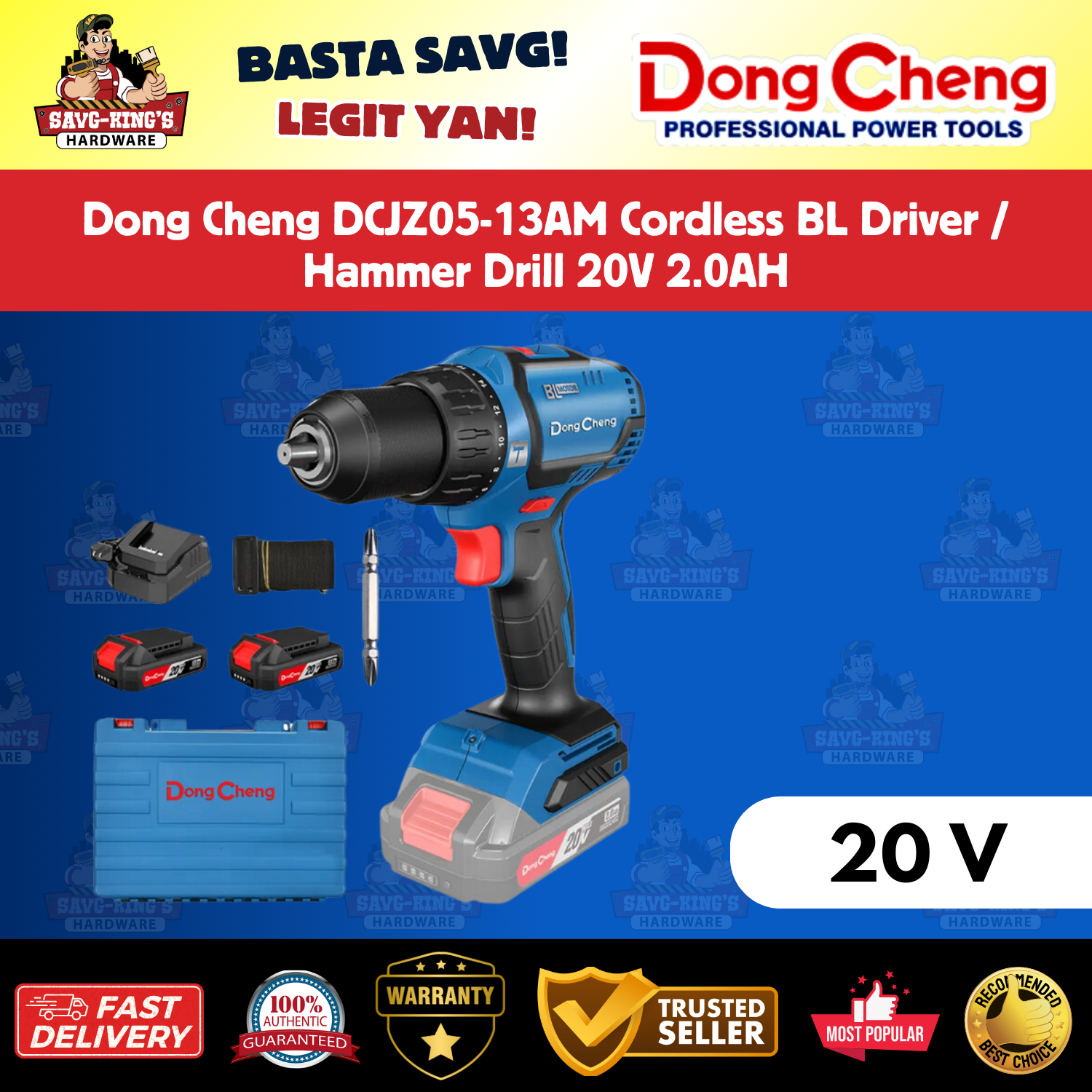

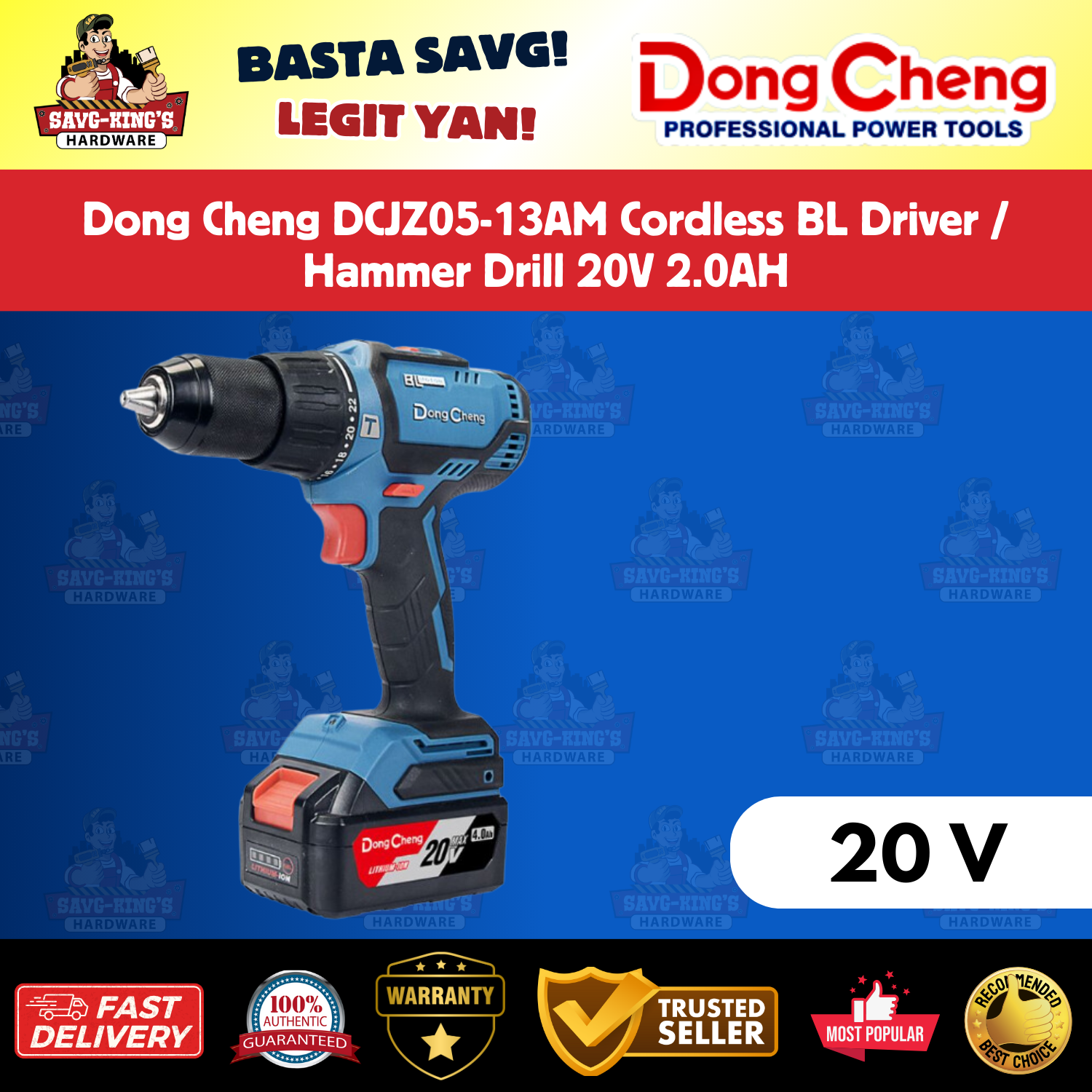

Dong Cheng DCJZ05-13AM Cordless BL Driver / Hammer Drill 20V 2.0AH
The Dong Cheng DCJZ05-13AM is a cordless brushless driver/hammer drill designed for versatility, high performance, and user comfort. It comes equipped with a 20V battery and delivers efficient results in drilling, screw-driving, and hammering applications across various materials.
Key Features:
- Brushless Motor:
- Provides higher efficiency, longer lifespan, and reduced heat compared to brushed motors.
- Two-Speed Control:
- 1st Gear: 0–550 r/min (low speed for high torque tasks).
- 2nd Gear: 0–2000 r/min (high speed for precision drilling).
- Impact Function:
- Rated impact frequency of 0–36,000/min, making it suitable for drilling into brick walls and masonry.
- High Torque Output:
- 60Nm maximum torque for heavy-duty applications.
- Compact and Lightweight Design:
- Weighing 1.7kg, it is easy to handle and minimizes user fatigue.
- Max Drilling Capacities:
- Steel: ∅13mm
- Wood: ∅38mm
- Brick Wall: ∅13mm
- All-Metal Self-Locking Chuck:
- Ensures secure and stable bit holding for precise drilling.
Specifications:
- Model: DCJZ05-13AM
- Battery Capacity: 20V/2.0Ah
- Max Clamping Capacity: 13mm
- Max Screw Diameter: 10mm
- Max Torque: 60Nm
- Output Spindle Threads: 1/2″-20UNF
- No-Load Speed:
- 1st Gear: 0–550 r/min
- 2nd Gear: 0–2000 r/min
- Rated Impact Frequency: 0–36,000/min
- Net Weight: 1.7kg

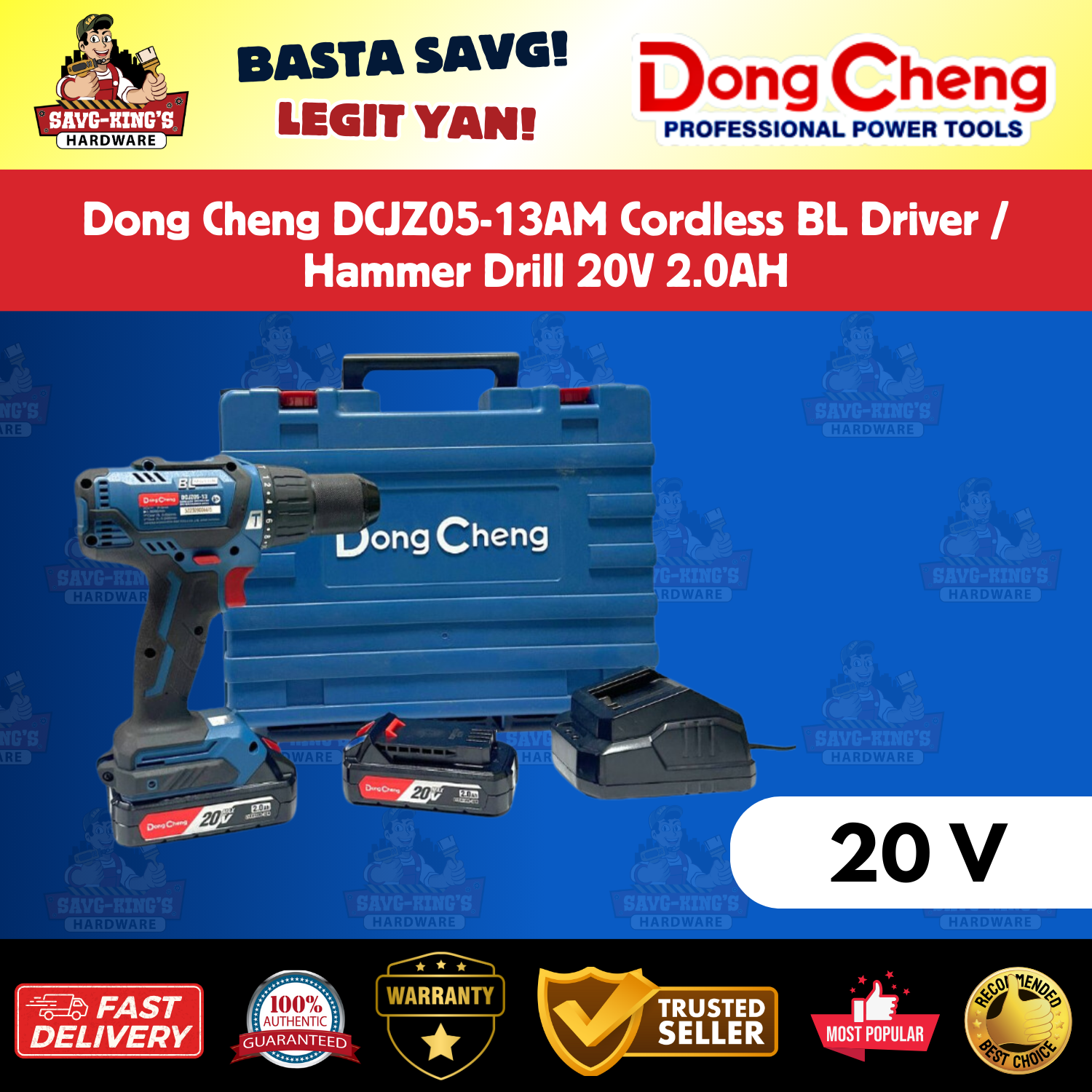

Inclusions:
- 2 x 2.0Ah Batteries
- Charger
The Dong Cheng DCJZ05-13AM Cordless BL Driver / Hammer Drill is an excellent tool for professionals and DIY enthusiasts alike. With its brushless motor, high torque output, and compact design, it is perfect for a wide range of tasks, from woodworking to concrete drilling.
