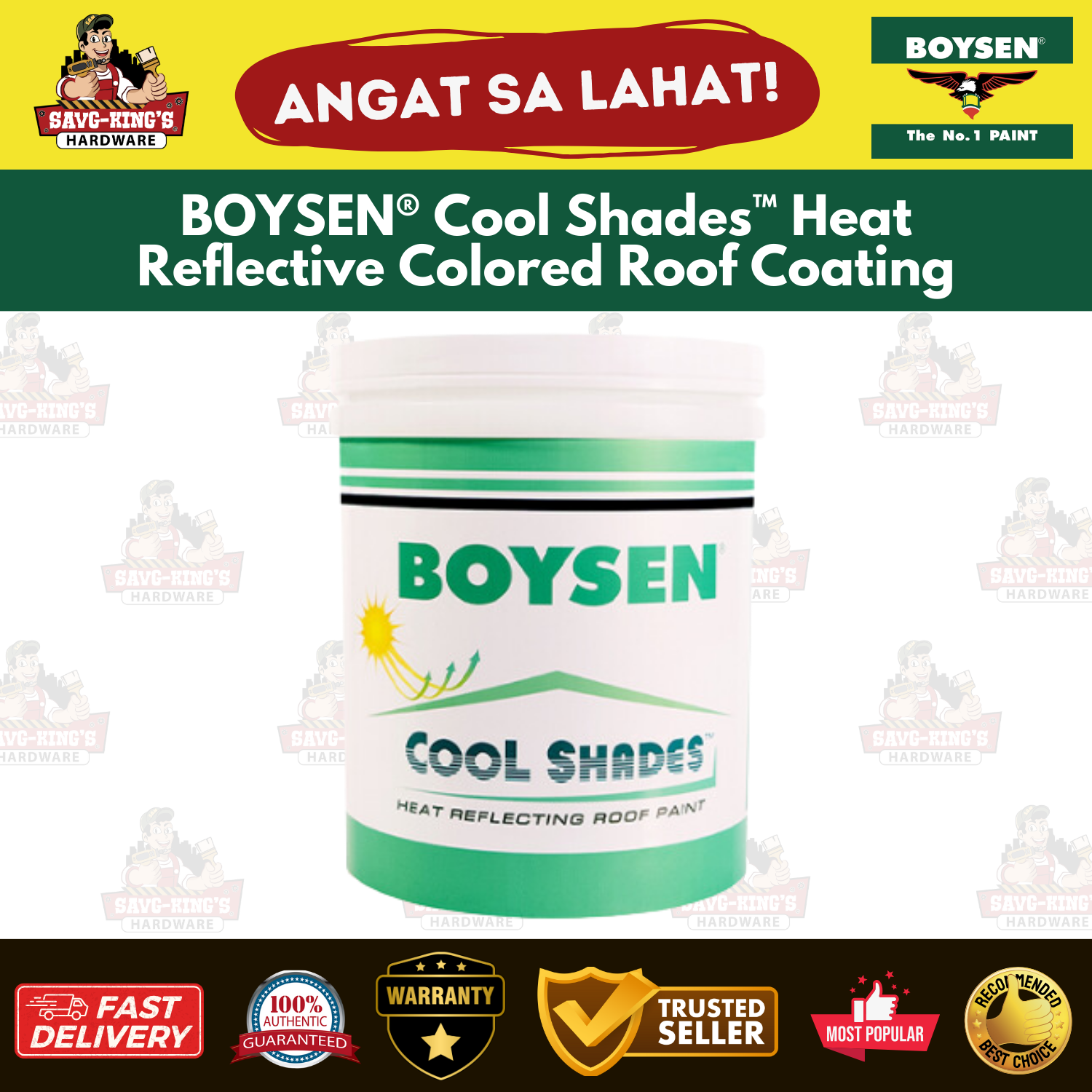

BOYSEN® Cool Shades™ Heat Reflective Colored Roof Coating

BOYSEN® Cool Shades™ Heat Reflective Colored Roof Coating

BOYSEN® Cool Shades™ is a high-performance, water-based, low-VOC roof coating formulated with advanced infrared-reflecting (IR) pigments. This innovative technology allows for stylish and vibrant roof colors while significantly reducing heat build-up on painted surfaces. The 100% acrylic binder enhances dirt pick-up resistance, ensuring long-lasting heat-reflective properties and durability over time.

Available Colors:

• B-8500 Reflecting White
• B-8501 Shady Gray
• B-8520 Radiant Beige
• B-8547 Polarize Blue
• B-8550 Spring Green
• B-8573 Vibrant Terra Cotta
• B-8580 Zen Brown

Technical Specifications:

• Principal Use: Heat-reflective roof coating for various properly primed roofing materials
• Vehicle Type: Acrylic
• Finish: Gloss
• VOC Content: 21.3 g/L (±2.0 g/L)
• Dry Time:
  • Touch Dry: 1 hour
  • Recoat: 2 hours
  • (Based on 25°C and 50% relative humidity)
• Density: 1.22 kg/L (±0.05 kg/L)
• Theoretical Coverage: 30-35 sq. m. per 4L at 1.7-1.4 mils DFT (Depending on surface texture and porosity)
• Tinting: Factory-mixed colors only
• Thinning: Use as supplied; if necessary, thin with a maximum of ½ liter of clean water per 4L can
• Clean-up: Water

Application Methods:

• Brush
• Roller
• Airless Spray

Key Features:

✅ Superior Heat Reflectivity – IR pigments reflect infrared light, preventing heat absorption and keeping surfaces cooler.
✅ Energy-Efficient & Cooling Effect – Helps reduce indoor temperatures, lowering cooling costs.
✅ Dirt Pick-Up Resistant – The all-acrylic formulation ensures the paint film stays clean longer, maintaining heat-reflective efficiency.
✅ Durable & Long-Lasting – Offers excellent resistance to dirt, moisture, and weathering.

Service Conditions:

• For best results, use with BOYSEN® Primeguard™ White B-4301 as a primer for new galvanized iron, aluminum, or stainless steel surfaces.

Surface Preparation Guidelines:

✔ New Galvanized Surfaces: Wipe with a paint thinner-soaked rag to remove grease, oil, or contaminants. Apply BOYSEN® Metal Etching Solution B-71 (10% solution) for surface etching, rinse, and dry immediately.
✔ Unpainted Galvanized Surfaces (Exposed for 6+ Months): Etching is not required. Clean thoroughly before applying primer.
✔ Previously Painted Surfaces: Sand lightly and wipe clean before painting. Remove loose or peeling paint, spot-prime bare areas.
✔ Corroded Galvanized Surfaces: Remove rust by wire brushing and apply BOYSEN® Metal Etching Solution B-71 for 10-15 minutes. Rinse thoroughly and prime immediately after drying.
✔ Unglazed Roof Tiles: Clean surfaces thoroughly to remove dirt, dust, grease, and other contaminants.

Painting Schedule:

New Roofing:
1️⃣ Primer: BOYSEN® Primeguard™ B-4301 White
2️⃣ Topcoat: BOYSEN® Cool Shades™ (2 coats, any desired color)

Repainting:
✔ If bare substrate is exposed during preparation, apply a primer.
✔ Finish with at least 2 coats of BOYSEN® Cool Shades™ over a well-prepared, existing paint surface.

📦 Packaging: Available in 4-Liter cans.

Upgrade your roof with BOYSEN® Cool Shades™ – a stylish and energy-efficient solution for a cooler, more comfortable home!
